Yes. When properly designed and sized for the space, the EZ-Heat system can be used as a primary heat source. The EZ-Heat Classic system delivers 14 W/sq. ft. and is designed for whole-home and primary heating applications.

The EZ-Heat ECO system delivers 7 W/sq. ft. and is generally recommended for supplemental heating, comfort heating, or highly efficient spaces with low heat-loss requirements.

EZ-Heat ECO operates at 7 W/sq. ft. and is ideal for supplemental heat, floor warming, and energy-efficient spaces with lower heating requirements.

EZ-Heat Classic operates at 14 W/sq. ft. and provides a higher heat output for faster warm-up and primary heating applications.

The appropriate system depends on the room size, available floor coverage, insulation, climate, and calculated heat loss.

EZ-Heat can be installed beneath many common flooring materials, including:

• Tile and stone
• Engineered hardwood
• Laminate
• Luxury vinyl flooring
• Glued-down flooring
• Floating floor systems

Always confirm that the selected flooring product is approved by its manufacturer for use with radiant floor heating.

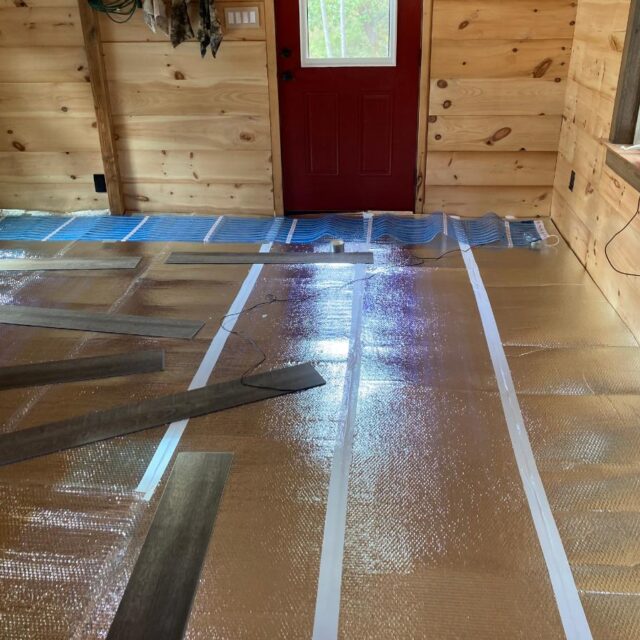

Yes. EZ-Heat offers a dry installation option beneath compatible floating floors, allowing the system to be installed without embedding it in a concrete or self-levelling layer.

This installation method can reduce installation time, material costs, and overall floor buildup. EZ-Heat may also be installed using traditional embedded methods when preferred or required by the flooring manufacturer.

The EZ-Heat heating mat is approximately 2.5 mm thick. Its low-profile design helps minimize changes to the finished floor height and makes it suitable for both renovations and new construction.

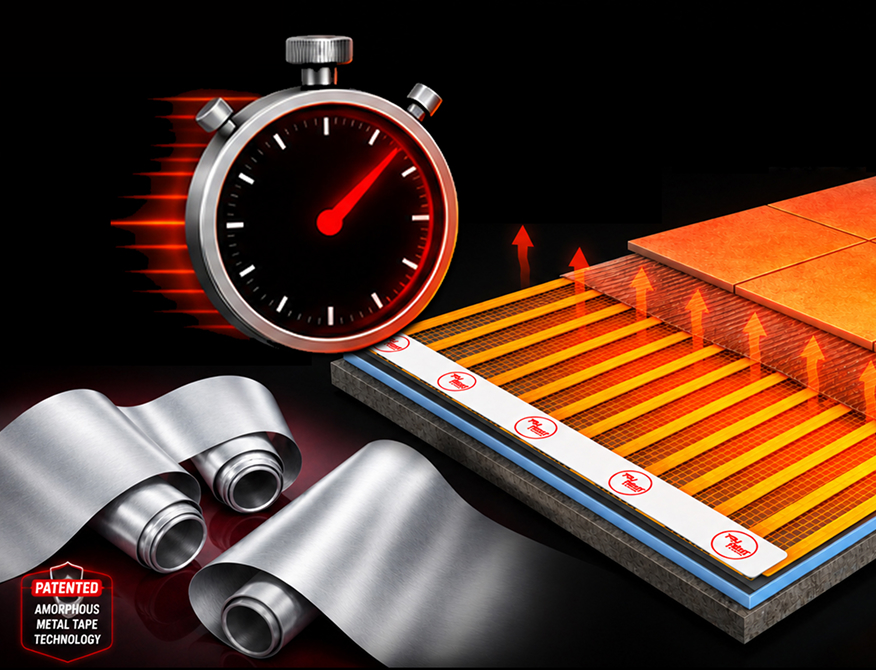

EZ-Heat is designed to respond quickly. The low-mass amorphous metal heating ribbon reaches its operating temperature rapidly and transfers heat efficiently across its flat surface.

Actual warm-up time will vary depending on the flooring material, insulation, subfloor construction, room temperature, and thermostat settings.

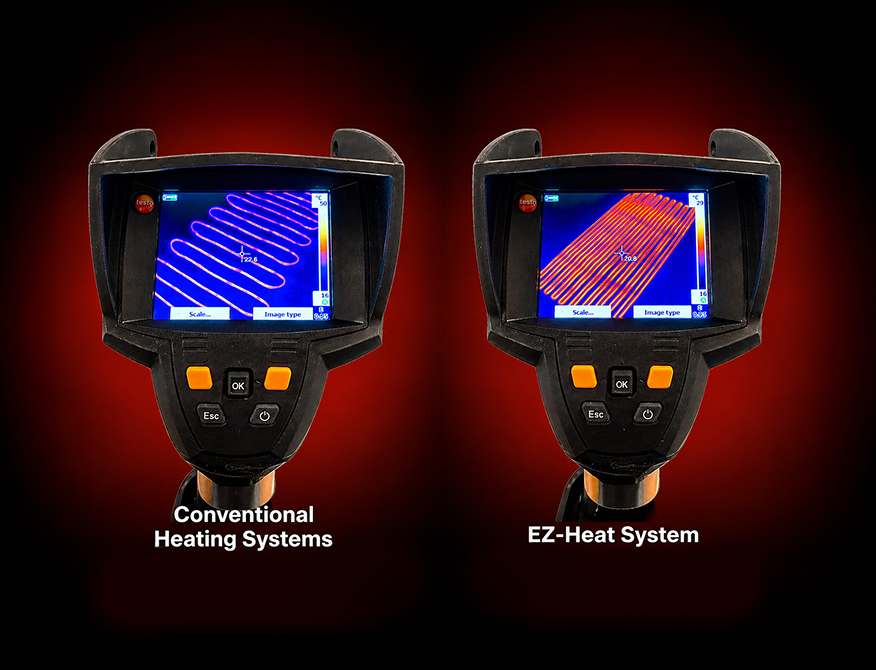

A flat heating ribbon creates more direct surface contact with the surrounding flooring assembly. This helps distribute heat over a wider area and transfer it toward the floor surface more efficiently.

Compared with a round heating cable, the flat ribbon also creates a lower-profile installation with fewer concentrated hot spots.

EZ-Heat is designed to heat the floor quickly and reduce the amount of time the system needs to operate. Its flat heating element provides broad heat distribution, while its low thermal mass allows it to respond faster than systems that must first heat a thick concrete layer.

Energy use will depend on the heat loss of the space, insulation, floor covering, thermostat settings, local climate, and electricity rates.

For primary heating applications, TruHeat generally recommends covering at least 75% of the available floor area.

Higher floor coverage provides more even heat distribution and allows the system to meet the room's heating requirements while operating at a comfortable floor temperature.

The heating mats should generally not be installed beneath permanently fixed cabinets, kitchen islands, built-in vanities, walls, or other areas where heat may become trapped.

The floor layout should be planned around permanent fixtures before the mat sizes are selected.

Most furniture can be placed over a radiant-heated floor when there is adequate airflow beneath it. Large furniture with a solid base, thick rugs, rubber-backed mats, or other highly insulating materials may trap heat and should be avoided unless approved by the flooring and furniture manufacturers.

The fiberglass mesh may be cut and turned to help the mat fit the room layout, but the heating ribbon itself must never be cut, shortened, crossed, overlapped, or damaged.

Mat sizes should be selected carefully based on the available heating area.

Yes. Multiple mats can be connected in parallel and controlled by a single thermostat, provided the combined electrical load does not exceed the thermostat's rated capacity.

For larger installations, power modules, relays, contactors, or multiple control zones may be required.

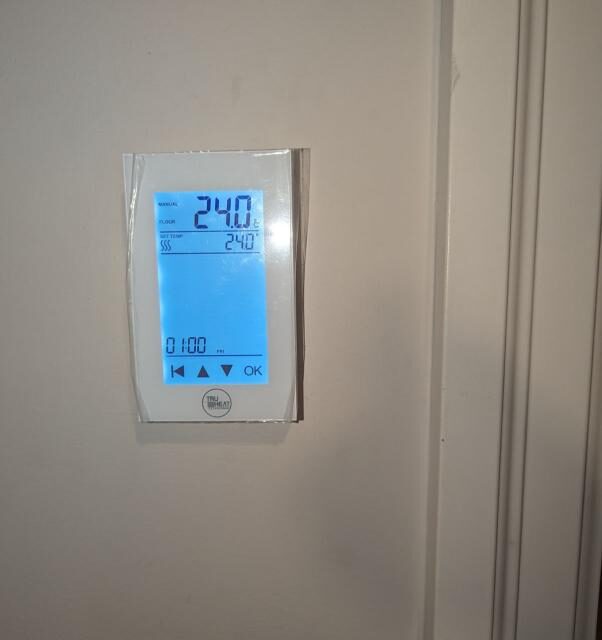

EZ-Heat systems can be paired with a compatible floor-heating thermostat featuring a floor sensor and built-in Class A GFCI protection.

Programmable and Wi-Fi-enabled control options are available, depending on the project requirements.

The floor sensor allows the thermostat to monitor and control the floor temperature. This helps maintain comfort, protect the flooring material, and prevent the floor from exceeding the recommended temperature.

The sensor is installed between the heating ribbons and should be placed inside a conduit whenever possible so it can be replaced if necessary.

Yes. EZ-Heat mats are available in both 120V and 240V configurations.

The appropriate voltage will depend on the project size, electrical service, mat availability, and circuit design.

Yes. EZ-Heat can be installed in bathrooms and other suitable interior areas when it is installed according to the product instructions and all applicable electrical and building codes.

A properly installed waterproofing system may also be required depending on the room and flooring assembly.

Installation inside a shower area depends on the specific system configuration, local electrical code, waterproofing method, and product approvals.

Contact TruHeat before including heated mats inside a shower enclosure

Yes. EZ-Heat can be installed over properly prepared concrete and wood subfloors.

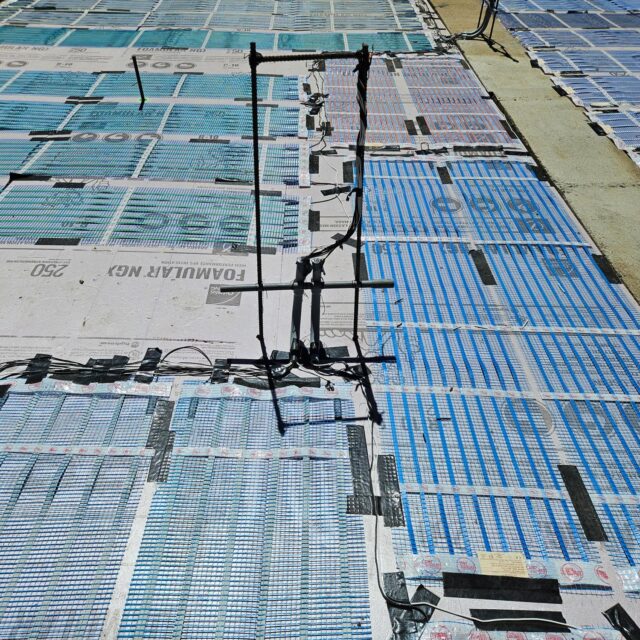

The surface must be clean, stable, level, and suitable for the selected installation method. Insulation beneath the heating system is strongly recommended where practical, especially over concrete slabs.

Insulation is not always mandatory, but it is highly recommended. Proper insulation reduces downward heat loss, improves warm-up time, and helps lower operating costs.

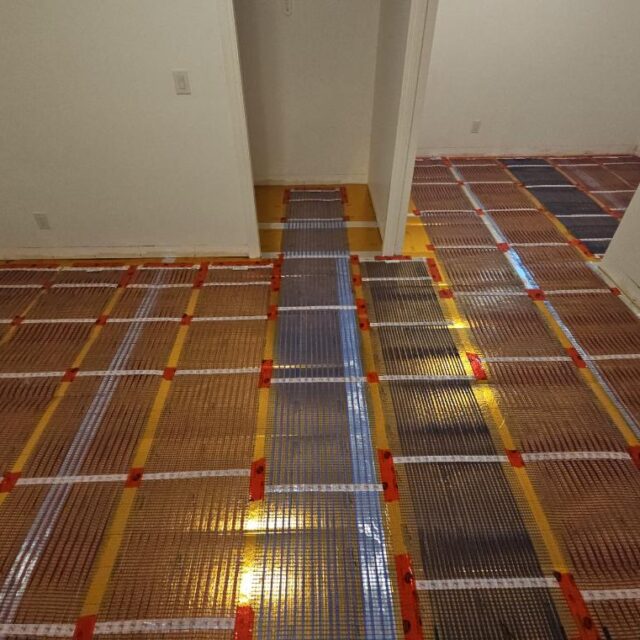

This is especially important over concrete slabs, garages, basements, crawlspaces, and other unheated areas.

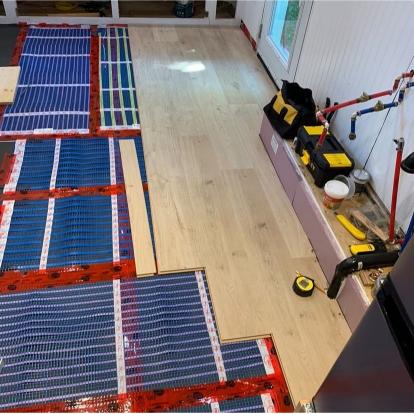

Yes. The system's low-profile construction makes it well suited to renovation projects where minimizing additional floor height is important.

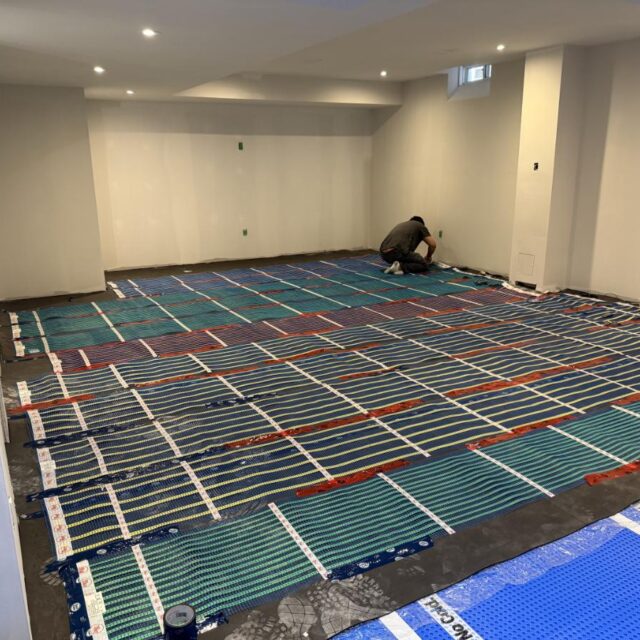

It can also be used in new construction, additions, basements, bathrooms, kitchens, bedrooms, and whole-home heating projects.

The heating mats may be laid out by a qualified installer in accordance with the installation instructions, but all permanent electrical connections must be completed by a licensed electrician in accordance with local electrical codes.

Yes. TruHeat can help review floor plans, calculate the available heating area, recommend mat sizes, determine electrical requirements, and prepare a system layout for the project.

Providing accurate floor plans and the locations of permanent fixtures helps ensure the system is properly designed.

The EZ-Heat system is backed by a 15-year limited warranty when it is installed, tested, and documented in accordance with TruHeat's installation requirements.

Refer to the official warranty documentation for complete terms, conditions, and exclusions.

The heating mats should be electrically tested before installation, during installation, and after the finished flooring has been installed.

Resistance readings should be recorded and compared with the values shown on the product label. A continuity alarm is also recommended during flooring installation to immediately identify accidental damage.

Do not energize or cover a damaged heating mat. Stop the installation and contact TruHeat for guidance.

In many cases, damage can be located and professionally repaired before the finished floor is completed.

The correct system depends on the size of the space, desired heating performance, available floor coverage, floor construction, insulation level, electrical capacity, and calculated heat loss.

Contact TruHeat with your floor plans and project details for a system recommendation and layout.
